Description

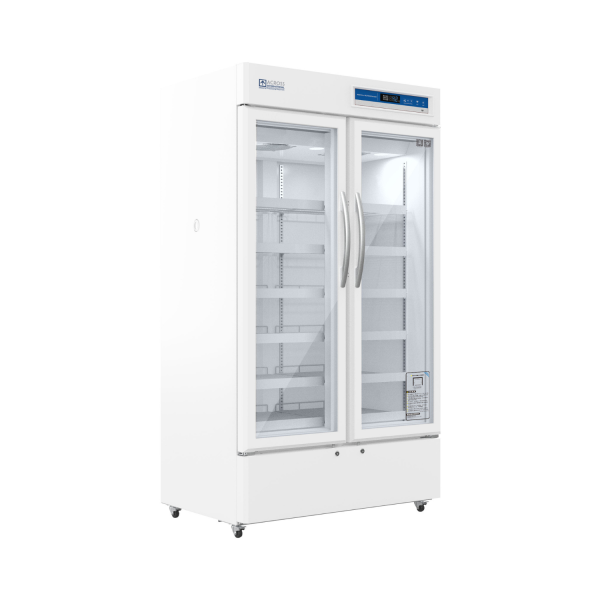

2C to 8C Upright Vaccine Refrigerator | 26 Cubic Foot | Medical Labs and Pharmacy Drug Storage

The 2 to 8C upright vaccine refrigerator is perfect for medical labs and pharmacies or large scale COVID vaccination centers that need to store pharmaceutical samples and products. Built to meet CDC and VFC guidelines. Built-in USB data logger and RS485 interface

Moderna COVID Vaccine Storage Requirements Prior to Administration:

  • Vaccine vials may be stored in the refrigerator between 2°C and 8°C (36°F and 46°F) for up to 30 days before vials are punctured
  • After 30 days, remove any remaining vials from the refrigerator and discard following manufacturer and jurisdiction guidance on proper disposal
  • Thawed vaccine cannot be refrozen

Pfizer COVID Vaccine Storage Requirements Prior to Administration:

  • Before mixing, the vaccine may be stored in the refrigerator between 2°C and 8°C (36°F and 46°F) for up to 120 hours (5 days)
  • After 120 hours (5 days), remove any remaining vials from the refrigerator and discard following the manufacturer’s and your jurisdiction’s guidance on proper disposal

2C to 8C Upright Vaccine Refrigerator Features

  • Forced air circulation ensures frost free chamber and +/-2°C temperature uniformity
  • Backup battery keeps controller running for 72 hours for alarm purposes in case of power failure
  • Durable and easy-to-clean stainless steel interior
  • Lock-able doors for added security
  • Data Storage: Built-in USB data logger and RS485 interface
  • Remote Alarm
  • HCFC-free refrigerant
  • Power failure protection, sensor failure protection, high/low temperature, backup battery protection
  • Built to meet CDC and VFC guidelines
  • Great for Covid-19 specimen, vaccine and medicine storage
  •  Safety Features: Power failure protection,  Sensor failure protection, High/low temperature alarms, 72 hours backup battery protection upon power failure (for controller), Lock-able door with keys

Important!

  • Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
  • This unit is NOT designed to be used on a mobile platform.

Lab Refrigerator Additional Working Details:

  • Keep on a stable, well-ventilated platform with no excessive dust, this is not designed for mobile vaccine transportation
  • Keep freezer at least 12 inches from any walls or ceiling
  • Use dedicated power, do not share outlet
  • Extension power cable: less than 10 feet is required
  • Freezer and power outlet should be grounded properly
  • Avoid direct sunlight, water spills and do NOT use freezer outdoors
  • Clean condenser fins and remove frost inside chamber at least once a month
  • Important! Do not plug in your unit until 24 hours have passed after installation to allow refrigerant to equalize. Wait 24 hours before turning unit on for the 1st time
  • Access Port: One, 25mm diameter
  • Communication Port: RS485
  • Includes 4 castors
  • Noise level: 27 dBA
  • Unit shipping weight & dimensions: 375 Lbs. Unit Weight / 440 Lbs. Shipping
  • Unit shipping dimensions: 43 x 30 x 78″  unit/ 46 x 32 x 82″ (W x D x H) Shipping (please call for accurate freight pricing)
  • Warranty: 1 year

Downloads

User Manual

For more documentation, please visit DigiVac’s folder.

Technical Specifications

 Model  M26
 Electrical requirements  110V (±10%) 60Hz 1-Phase 790 watts
 Temperature range  2°C to 8°C
 Compressor  Number of compressor: one
Make: SECOP
Refrigerant: R290
 Chamber  Dimensions: 38.5 x 23.5 x 49.5″ (WxDxH)
Material: stainless steel
Capacity: 25.6 Cu Ft
Lighting: low heat emission LED
 Shelf  Material: powder coated steel
Quantity: 12
 Working environment – Humidity: <85% Rh
– Altitude: < 2000 m / 6561 Ft
– Stable, well-ventilated platform with no excessive dust
– Keep refrigerator at least 12 inches from any walls or ceiling
– Use dedicated power, do not share outlet
– Extension power cable should be less than 10 feet is required
– Freezer and power outlet should be grounded properly
– Avoid direct sunlight, water spill and do NOT use freezer outdoor
– Clean condenser fins and remove frost inside chamber at least once a month
– Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for
24 hours before turning the unit on for the first time.
 Access port  One, 25mm diameter
 Communication port  RS485
 Casters  Four
 Unit/shipping weight & dimensions  375 Lbs / 440 Lbs
43 x 30 x 78″ / 46 x 32 x 82″ (WxDxH)
 Safety  Power failure protection
Sensor failure protection
High/low temperature alarms
72 hours backup battery protection upon power failure (for controller)
Lock-able door with keys
 Warranty  One year

Product Inquiry



2C to 8C Upright Vaccine Refrigerator with Data Storage | 26 Cubic Foot | Medical Labs and Pharmacy Drug Storage
$4,390.00
