Bullseye DASH | Portable Calibration Kit with Capacitance Manometer Gauge

The calibration kit contains our Portable DASH measurement instrument, wide-range sensors and fittings necessary to perform in-situ vacuum measurement and calibration of your process equipment. It is a simple single-box tool kit designed as a quick solution for those who perform validation/calibration of vacuum equipment on a routine basis. No longer track down to find the right induvial fittings and sensors,  Grab your Calibration Kit and be ready to go !

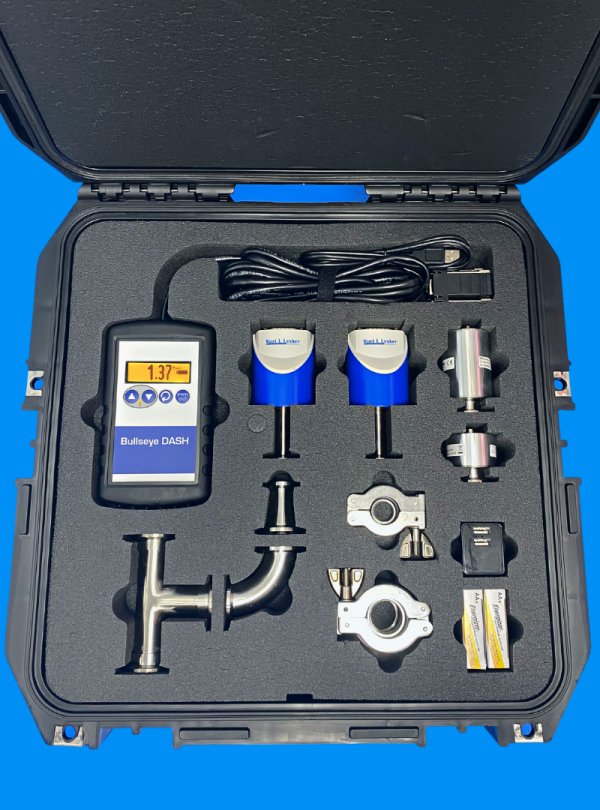

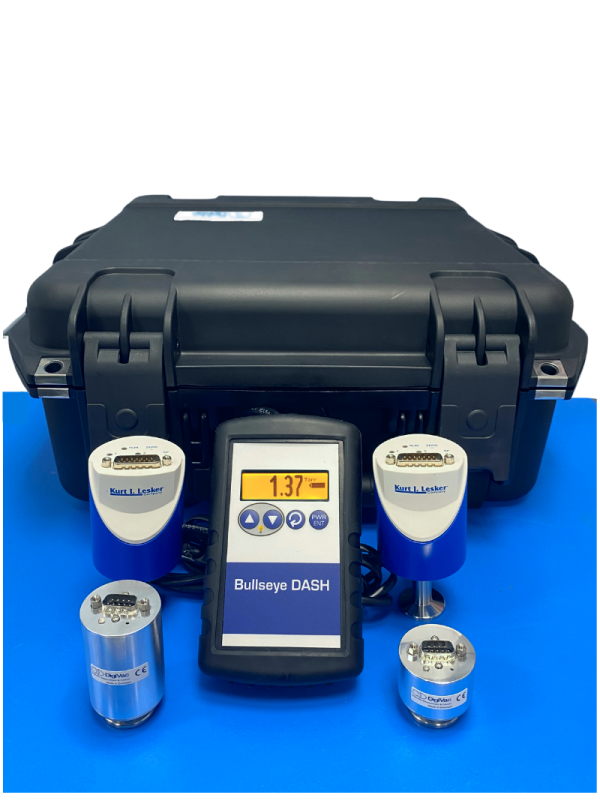

The Kit includes:

  • Bullseye DASH with Protective magnetic boot cover
  • RJ45 to DB15 Cable Adapter
  • RJ45 to DB9 Cable Adapter
  • 0.1 Torr Capacitance Manometer
    • The 0.1 Torr Capacitance manometer is used as a standard from 0.1 Torr to 5 x 10^(-04)  Torr
  • DCP 10 Torr Capacitance Manometer Quantum Gauge
    • The DCP has an integral capacitance manometer, and is used as a standard in the region of 10 Torr to 0.1 Torr
  • 1000 Torr Capacitance Manometer
    • The 1000 Torr Capacitance manometer is used as a standard for the pressure/vacuum region from 1000 Torr to 10 Torr
  • DPP Quantum high vacuum gauge
    • The DPP employs an advanced pirani technology, and is used for general and high vacuum measurement from 7.5 x 10^(-06)   Torr to 1000 Torr for clean, dry environments; and is used as a high vacuum comparison device to validate pressures between 7.5×10^(-06) and 1 x 10^(-03)   Torr.
  • KF25 Tee
  • KF25 Elbow
  • 3 KF25 Clamps w/ Centering Rings
  • KF25 to KF16 Adapter
  • 1 KF16 clamp w/ Centering Ring
  • 2 Cases of 4x AA Batteries.
  • USB Power Adapter w/ Cable

Applications

  • Calibration Validation, Verification, and Qualification
  • Vacuum validation of gauges, displays, pumps and tools
  • Tool matching
  • R&D temporary test system measurement that requires the direct measurement accuracy of Capacitance Manometers
  • For operators wanting to double check their instruments that are installed on tools and vacuum systems
  • Use as a field calibration standard for thermal gauges installed in systems

DASH

Bullseye DASH is the 1st Portable Capacitance Manometer Gauge that both powers and displays the vacuum readings of capacitance manometers. Excellent troubleshooting vacuum gauge for powering and displaying capacitance manometer readings around the lab or on the go in the field.

  • Portable on-board power and battery operated, great for confirming readings of multiple capacitance manometers on a system
  • Rugged design of gauge with solid state electronics for durability and long lifespan with proper maintenance
  • Sensors supported include: Inficon: Porter;  MKS: AA01, 722B, 730B;  KJLC: Carbon, ACG (Note: Capacitance Manometer sold separately)

What the Bullseye DASH Stands For:

  • D – Direct Measurement of Capacitance Manometer
  • A – Active Monitoring
  • S – Scientific Applications
  • H – Historical Data Tracking, High (Vacuum)

DASH- Portable and Precise

  • Includes a powerful magnet and kickstand to enable hands-free operation
  • Solid state electronics built into a handheld gauge that operates using AA batteries (4) and lasts 20 hours when used with a porter CM or 7 hours with a standard ambient capacitance manometer
  • Versatility with 12 different measuring units (micron, Torr, Inches of Hg, kPa, Inches of H20, millitorr, mbar, Pa, PSIA, mm of Hg, bar, and mm of H2O)
  • This Portable Capacitance Manometer has the option to be powered with a Micro-USB power supply
  • Calibrated under actual vacuum against a NIST standard (NIST certification and documentation is optional)

Graphing and Analysis

  • Patented vacuum graphing displays vacuum and time data
  • Visual graphing right on the display that identifies current system status
  • Vacuum Analytics to quickly identify vacuum pressure trends
  • Graphical display for quick determination of vacuum level
  • Bluetooth Version of the Bullseye DASH is available for Remote Monitoring

Sensors supported include:

Inficon Porter
MKS AA01; 722B; 730B
KJLC Carbon; ACG



Watch this video of Tim Collins (DigiVac’s CEO) using the Bullseye DASH to instrument our vacuum pump down solution to verify function and safety. And this video overviews Bullseye’s use in understanding vacuum system function and performance.

Here is a video giving a brief overview of the Calibration Kit and what it offers!

Downloads

Operation Manual [DASH]
Data Sheet [DASH]
Quick Start [DASH]
Quick Start [Cal Kit]
Sensor Selection
Is Your Pump Working?
 Sensor Range Chart

For more documentation, please visit DigiVac’s folder.

Technical Specifications

Units Torr, mbar, bar, kPa, inches of Hg, mm Hg, millitorr, microns, inches of water, PSI, Pa
Control Range Dependent on the CM
Range with Accuracy Dependent on the CM
Sensor Type Capacitance Manometer
Dimensions 6.2”H x 3.7”W x 1.3”D
Certifications ROHS and CE

Product Inquiry



Dash Calibration KIT
Bullseye DASH | Portable Calibration Kit with Capacitance Manometer Gauge
$8,647.50
