Description

Cascade Stainless Dry Ice Trap | Cascade Cold Trap | Protect Vacuum Pumps

Product Details

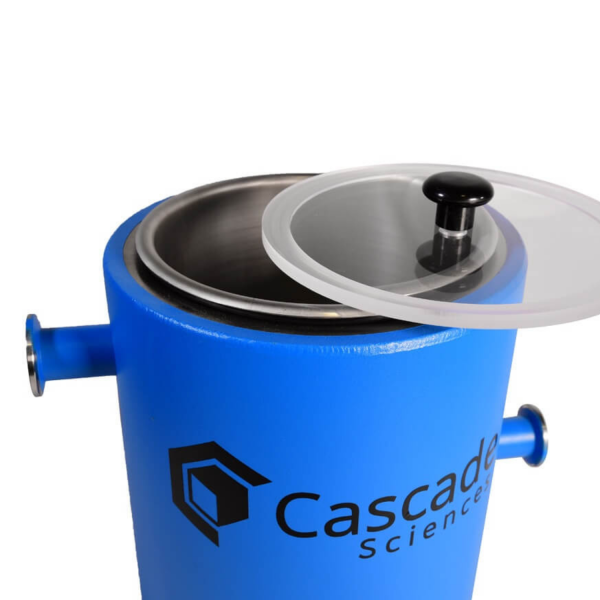

Got Ice? Save money with this “ice bucket” style cold trap. Fill the internal stainless steel reservoir with a cold slurry mix of ice / alcohol / dry ice and set inside the larger steel vessel. Made from 304 stainless steel, this is a rugged dry ice cold trap versus the cold finger glass-type cold trap. The cold surface of the trap attracts and condenses material that would otherwise be ingested by the vacuum pump.

Cold traps are a great way to extend the time between vacuum oven rebuilds and oil changes. With this style of a cold trap, the cold is provided by filling the interior reservoir with ice. No additional mechanical refrigeration or power is required.

Cascade also provides large KF-25 size inlets and outlet for the trap. This does not impede vapor flow.

  • 3 Quart Capacity (2839 mliters)
  • Sits on benchtop between oven and pump
  • Large KF-25 connections for inlet and outlet
  • 304 Stainless Steel, Viton Seals

See it in action here!

Specifications

3 Quart Capacity (2839 mliters)

Sits on benchtop between oven and pump

Large KF-25 connections for inlet and outlet

304 Stainless Steel, Viton Seal

Dimensions:

HEIGHT
9″ H without lid
11″ H with lid

INTERNAL ICE RESERVOIR
Depth 7″
Width 6.25″

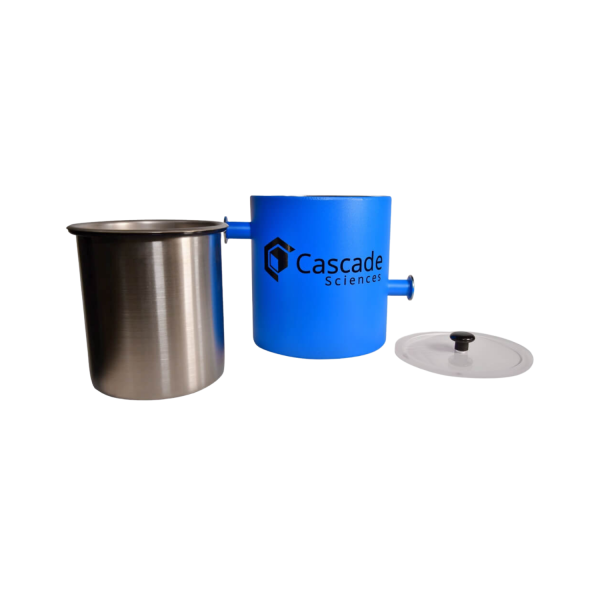

Included Parts:

ICE COLD TRAP EXTERIOR STEEL VESSEL
999-00088

VITON O-RING
6000515

INTERNAL CAN
7930529

ACRYLIC LID
9510512

Product Inquiry



stainless dry ice cold trap Cascade
Cascade Stainless Dry Ice Trap | Cascade Cold Trap | 304 Stainless
$835.00
