Digivac DINAMO Medium Vacuum Controller | Precise Micron Control

Digivac DINAMO Medium Vacuum Controller: This novel dual valve module design will make your start-up procedure much easier and quicker. The DINAMO will reduce the amount of time you spend opening and closing a bunch of valves in different locations.

Get More Flow with Dinamo! Great For Precise Micron Control in Medium Vacuum Applications

  • Precision Vacuum Control & Intuitive Design
  • Wetted surfaces: Stainless Steel construction
  • Medium vacuum control: Seamless vacuum control range of 10 millitorr (10 microns) to 6 Torr
  • Vacuum processing: Vacuum Drying, Medical Sterilization, Lyophilization
  • Unique Vacuum Control: proportional throttle and proportional bleed control all in one unique valve
  • Recipes: Program RAMP and HOLD vacuum at different a duration (Time) and vacuum level (Torr/mbar/microns/millitorr/kPa)
  • Sensor: Features Agilent 536 NPT Vacuum Sensor that is plumbed into the Dinamo valve

UNIQUE DUAL VALVE DESIGN | Dinamo | Ideal for the Medium Vacuum Range

  • Manufactured and Designed by DigiVac
  • Twice the Control | Fine proportional control and bleed control to vent to ATM all in one valve
  • Pipe in Dry Gas for Clean Venting

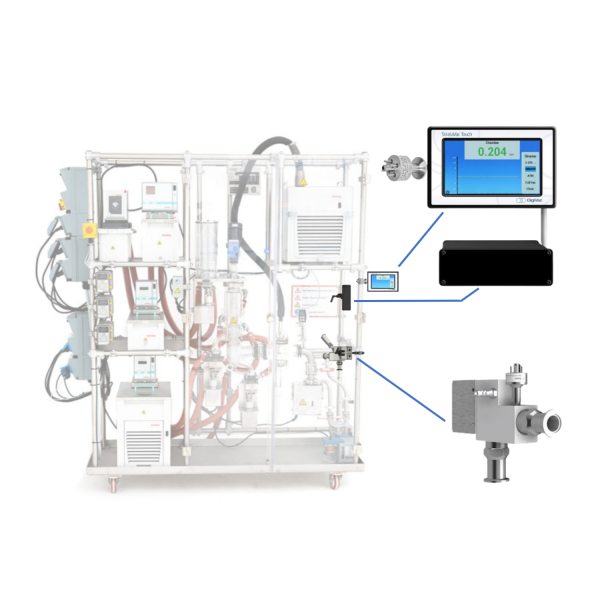

  • The Dinamo valve delivers precise vacuum control with the benefit of being able to pump down large vacuum chambers very quickly


  • Innovative Valve Design with High Flow and Fine Vacuum Control
  • Low Power Consumption
  • Calibrated under actual vacuum against a NIST standard (NIST certification with documentation is an available option)


  • Maximum Throughput
  • Faster Pump Down
  • Control at Deeper Vacuum Pressures

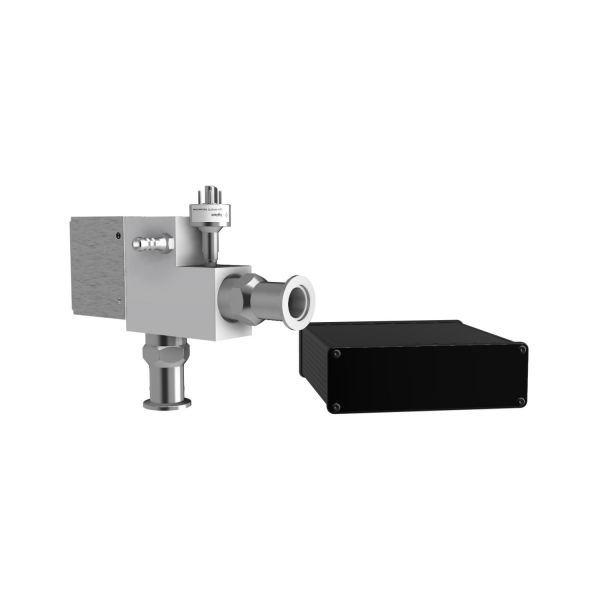

This Medium Vacuum Control Bundle Comes with:

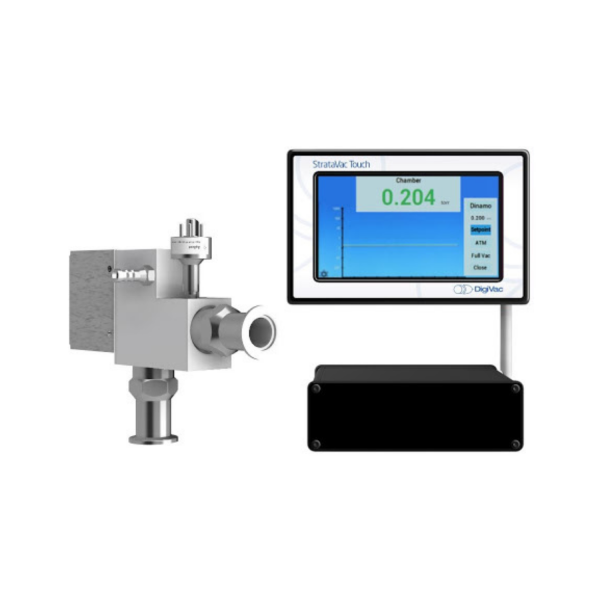

  • StrataVac Touch Controller
  • Agilent 536 NPT Sensor and driver card (other vacuum interfaces are available KF25, KF16)
  • Dinamo Valve and valve driver card
  • Want WiFi? Contact us for a quote for this option

StrataVac Software: With Optional WiFi

  • WiFi connected data can be used on any browser by connecting to to display, graph and log vacuum data
  • Watch this video of DigiVac’s CEO, Tim Collins, demonstrating how and StrataCapture (StrataVac’s companion app)


User Manual Data Sheet Quick Start Guide DV CUP Cheat Sheet

For more documentation, please visit DigiVac’s folder.

Technical Specifications

Units Torr, mbar
Control Range 20 millitorr to 6 Torr
Range with Accuracy 1 millitorr to 760 Torrr
Sensor Type SEN-536
Certifications CE, UL, CSA (planned for 1H 2020)

Product Inquiry

Digivac Dinamo Medium Vacuum Controller
DINAMO | Medium Vacuum Control Bundle | Precise Micron Control .01 Torr to 6 Torr
