Description

Pfeiffer MVP 015-4 Diaphragm Pump | 0.38 CFM pump with 0.375 Torr base pressure |PKT05064

MVP 015-4 DC, diaphragm pump, 24 V DC

Pfeiffer MVP 015-4 diaphragm pump delivers .38 CFM and has KF16 Inlet valve ideal for use as a backing pump for Turbo pumps.

  • MVP 015-4, diaphragm pump, 120 V, 60 Hz
  • Powerful diaphragm pump with a pumping speed of up to 0.65 m3/h
  • For mains voltage: 120 V (+ 5% / – 10%) 60 Hz
  • Ideal for applications where a dry and oil-free vacuum is required
  • The excellent final pressure offers an ideal combination with Pfeiffer Vacuum turbopumps

Product Description

  • No hydrocarbons: Completely dry & oil-free diaphragm pump
  • Low noise level, low vibrations and compact design, also ideal for use in laboratories
  • Low operating costs thanks to the highest quality, short maintenance times and long maintenance intervals
  • Industry 4.0 compatible: Operation with other intelligent products, such as turbopumps via RS-485
  • (PN):  PKT05064

Please note: cable has to be ordered as accessory separately

Pfeiffer MVP 015-4 Diaphragm Pump Technical Specifications

Pumping speed at 60 Hz: 0.65 m³/h | 0.38 cfm | 10.83 l/min
Final pressure without gas ballast:  5 · 10-1 hPa | 3.75 · 10-1 Torr | 5 · 10-1 mbar
Leakage rate: ≤ 5 · 10-4 Pa m3/s | ≤ 3.75 · 10-3 Torr l/s | ≤ 5 · 10-3 mbar l/s
Intake pressure max: 1,100 hPa | 825 Torr | 1,100 mbar
Exhaust pressure, max: 1,100 hPa | 825 Torr | 1,100 mbar
Connection flange (in): DN 16 ISO-KF
Connection flange (out): 1/8″ thread with silencer
Mains connection: voltage 60 Hz 120 V
Mains connection: voltage (range) +5 %/-10 %
Current, max: 3.5 A
Protection degree: IP54
Switch: No
Sound pressure level: 52 dB(A)
Ambient temperature: 12-40 °C | 53.6-104 °F | 285-313 K
Temperature: Storage 5-40 °C | 41-104 °F | 278-313 K
Temperature: Shipping -10-60 °C | 14-140 °F | 263-333 K
Cooling method: Convection cooled
Weight: 7.5 kg | 16.53 lbs
Gas ballast: No
Operating altitude, max: 2000 m

Features

Pfeiffer Diaphragm Pump PKT05064 runs extremely quite. The inlet has a KF16 flange connector for connection to turbo or other vacuum applications. This pump operates on 120 VAC 60hz. It is ideally suited for employment as a backing pump for the Pfeiffer Vacuum Turbo pumps and for integration into compact systems.



Technical Specifications

Pumping speed 0.8 m³/h | 0.47 cfm | 13.33 l/min
Final pressure without gas ballast 5 · 10-1 hPa | 3.75 · 10-1 Torr | 5 · 10-1 mbar
Leakage rate 5 · 10-4 Pa m3/s | 3.75 · 10-3 Torr l/s | 5 · 10-3 mbar l/s
Intake pressure max. 1,100 hPa | 825 Torr | 1,100 mbar
Exhaust pressure, max. 1,100 hPa | 825 Torr | 1,100 mbar
Connection flange (in) G 1/8″
Connection flange (out) 1/8″ thread with silencer
I/O interfaces RS-485
Supply: Voltage V DC 24 V DC
Current, max. 6.8 A
Rotation speed 540-1,800 rpm | 540-1,800 min-1
Nominal rotation speed 1,500 rpm | 1,500 min-1
Protection degree IP20
Switch No
Sound pressure level 45 dB(A)
Ambient temperature 5-40 °C | 41-104 °F | 278-313 K
Temperature: Storage 5-40 °C | 41-104 °F | 278-313 K
Temperature: Shipping -10-60 °C | 14-140 °F | 263-333 K
Cooling method Convection cooled
Weight 4.4 kg | 9.7 lb
Gas ballast No
Operating altitude, max. 2000 m

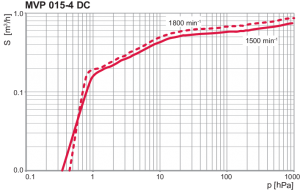

Pump Curve

Accessories

Adapters (electrical)

    • RS-232/485

Cables

    • Backing pump control cables

    • Connection cables

    • RS-485 Interface cables

Connections

    • Adapters Turbopump to Backing Pump

    • Screw-in flanges

Control Devices

    • Power supplies and control displays

Downloads

User Manual Data Sheet

For more documentation, please visit DigiVac’s folder.

Product Inquiry



Pfeiffer MVP 015-4 Diaphragm Pump PKT05064
Pfeiffer MVP 015-4 Diaphragm Pump | 0.38 CFM with 0.375 Torr base pressure |PKT05064
$2,570.00
