Pfeiffer ACP 15 “G” Multi-stage Root Pump

Standard, single phase, manual gas ballast

V5GATSRFAF |Description

Alcatel Adixen ACP15G ACP 15G Dry Vacuum Pump For Pumping Traces of Corrosive Gas PN (V5GATSRFAF: old part number) V5GATSRGAF is the current part number

  • Pn: V5GATSRFAF was replaced with new part number V5GATSRGAF
  • “G” Version is specially designed for pumping traces of corrosive gases, with inert gas purge protecting the bearings
  • Oil-free multi-stage roots pumps of the ACP series, G versions, with a max. pumping speed of 15 m3/h
  • No particle contamination, thanks to frictionless design: no wear parts in the path of the pumped gases
  • No backflow of hydrocarbon vapors: ACP series pumps are lubricant-free inside the pumping module
  • Constant performance (pumping speed, max. continuous inlet pressure and final pressure)
  • High reliability: thanks to our expertise with oil-free multi-stage roots pumps since 1988
  • Low maintenance costs: no annual field service, complete overhaul only every 20,000 hours for ACP 15
  • The pump is compatible with traces of corrosive gases. A purge gas stream dilutes the corrosive media.

The Pfeiffer ACP 15 “G” Multi-stage Root pump, pumping technology is based on a frictionless multi-stage roots design. These Alcatel Adixen ACP15G dry pumps are specially designed for pumping traces of corrosive gas and therefore require an inert gas purge which protects the pump bearings. The Alcatel Adixen ACP series pumps are optimized for operation without lubricants inside the pumping module. The benefits of multi-roots dry pumps include oil-free and particulate-free dry vacuum, e.g., unlike their counterparts, the dry scroll pumps which generate tipseal dust and the oil-sealed rotary vane pumps which suffer from hydrocarbon vapor backstreaming. The new and improved ACP dry vacuum pumps offer a reduced cost of ownership (COO) and require an overhaul only every 22,000 hours.

Alcatel Adixen ACP15G ACP 15G Series 2 Dry Vacuum Pump

Features

These Alcatel Adixen ACP pumps include a single-phase integrated frequency converter with built-in instant voltage range selection. This allows these pumps to be smart and operate on any input voltage from 90 to 254 VAC at 50 or 60 Hz (with no motor setting changes required) while the rotational speed and pumping speed of the pump remains constant. This is a big selling point for OEM applications, if your tool or instrument is mobile the ACP pump can be used in any country or location that has 90 to 254 VAC 50 or 60 Hz wall plug .

The specifications for the new Alcatel Adixen ACP 15G ACP15G dry vacuum pump is 8.2 cfm (15 m3/hr) pumping speed, 37.5 mTorr ultimate pressure, can operate on input voltages from 90 to 254 VAC 50-60 Hz, air cooled, includes integrated digital timer, and have a KF25 inlet & KF16 exhaust.

Applications

  • Process monitoring
  • Focused ion beams
  • Load-locks and transfer chambers

Technical Specifications

Ambient temperature 12-40 °C | 53.6-104 °F | 285-313 K
Connection flange (in) DN 25 ISO-KF
Connection flange (out) DN 16 ISO-KF
Continuous inlet pressure, max. 1,013 hPa | 759.75 Torr | 1,013 mbar
Cooling method Air
Corrosive gas version Yes (light load)
Dimensions (L x W x H) 514 x 190 x 270 mm | 20.24 x 7.48 x 10.63 inch
Exhaust pressure, max. 1,200 hPa | 900 Torr | 1,200 mbar
Final pressure without gas ballast 5 · 10-2 hPa | 3.75 · 10-2 Torr | 5 · 10-2 mbar
Gas ballast No
Helium leakage rate, max. 5 · 10-8 hPa·l/s
Mains cable Yes, EU mains cable
Mains connection 110 – 230 V AC (±10%) 50/60 Hz
Motor type 1-ph motor
N2 sealing gas flow 5 slpm (0 °C)
Power consumption at final pressure 450 W
Processes Light Duty Applications
Pumping speed 14 m³/h | 8.24 cfm | 233.33 l/min
Sound pressure level 63 dB(A)
Version Corrosive gas version
Weight 23 kg | 50.71 lb

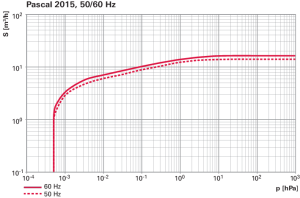

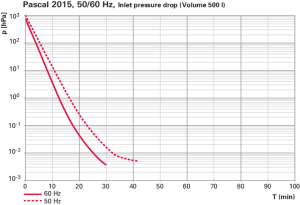

Pumping Curves

Accessories

Connections

    • ISO-KF, welded bellows sealed

Monitoring

Noise Reduction

    • Exhaust silencers

    • Noise reduction covers

Protection

Valves

Downloads

User Manual Brochure SheetData Sheet

For more documentation, please visit DigiVac’s folder.

Product Inquiry



Pfeiffer ACP 15 “G” Multi-stage Root Pump For Pumping Traces of Corrosive Gas | V5GATSRGAF
