Stratavac Controller
Showing 1–12 of 13 results
-
StrataVac 775i | Vacuum Gauge 10V Output | 1 Torr to ATM
$979.21Add to cartThe DigiVac StrataVac 775i gauge is paired with an isolated and hermetically sealed piezo-resistive sensor which monitors vacuum pressures between 1 Torr to atmosphere. Includes 10V/Volt output for vacuum transmitting to PLC.
- Ideal for industrial and laboratory applications that require rough vacuum measurement
- Rugged design for harsh applications | 316 stainless steel only wetted material in sensor
- Isolated and hermetically-sealed sensor to prevent contamination from system
- Allows for recording and data capture via the USB port
-
StrataVac Capacitance Manometer Bundle | Choose 1 Torr, 10 Torr, 1000 Torr Ambient Pressure Gauge
$786.02–$2,094.01Select optionsThe DigiVac StrataVac CM vacuum gauge uses an ultra-pure alumina ceramic diaphragm, which is corrosion proof and allows for better signal stability, faster recovery from atmosphere, short warm up time, and an extraordinary lifetime.
- Ideal for industrial and laboratory applications that require high accuracy pressure measurement
- Clean room compliant: sensor double protected from contamination
- Allows for recording and data capture via the USB port
-

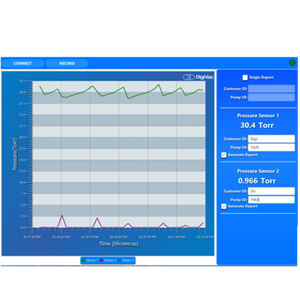

Vacuum Data Logging Software for DigiVac StrataVac Line | StrataCapture
Free!Add to cartStrataCapture is an easy to use desktop software that allows users to seamlessly capture, view and record their system performance in real time. It can record one or more sensors, allowing a full view of operation.
- Records time vs, vacuum data to a local file on a chosen computer. The file can be examined at a later time to determine performance and potential areas of concern

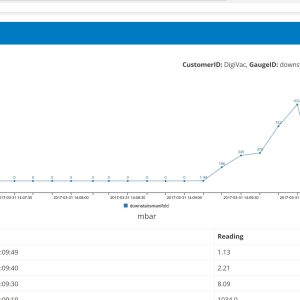

- While recording, StrataCapture will create a unique session on the DigiVac Cloud, vacuumnetwork.org. The Cloud allows real-time viewing of the system, updating once every 10 seconds.
- Capable of saving reports on each individual sensor, or one combined report of all sensors.
-
Wide Range Vacuum Gauge | StrataVac Cold Cathode/Pirani Bundle | 7.6 x E-10 to 760 Torr
$2,039.21Add to cartThe DigiVac StrataVac Wide Vacuum Gauge gauge is paired with combination cold cathode/pirani sensor which monitors vacuum pressures between 7.6×10-10 to 760 Torr (1×10-9 to 1000 mbar).
- This wide range vacuum bundle measures from rough up to high vacuum with high accuracy
- Cold Cathode/Pirani Combination Gauge (CCPG) reliably measures from atmosphere to 7.6 x 10-10 torr (1 x 10-9 mbar) on a single port
- Accuracy: 7.6 x 10-10 to 10-3 Torr (1 x 10-9 to 1000 mbar) ±30%
- Data Capture: Allows for recording and data capture via the micro-USB port
-
StrataVac 775i | Industrial Vacuum Gauge | 1 Torr to ATM
$959.21–$1,082.81Select optionsThe DigiVac StrataVac 775i gauge is paired with an isolated and hermetically sealed piezo-resistive sensor which monitors vacuum pressures between 1 Torr to atmosphere.
- Ideal for industrial and laboratory applications that require rough vacuum measurement
- Rugged design for harsh applications | 316 stainless steel only wetted material in sensor
- Isolated and hermetically-sealed sensor to prevent contamination from system
- Allows for recording and data capture via the USB port
-
StrataVac Touch Vacuum Controller | Multi-Gauge Controller with Touchscreen | Rough to High Vacuum
$1,549.00Select optionsThe StrataVac Touch is a premium vacuum controller with touchscreen display that allows you to monitor and/or control multiple areas of your vacuum system. Can be configured to cover a wide range of vacuum pressures from rough to high vacuum.
- Easily see a snapshot of up to 4 of your sensors and up to 3 valves across your vacuum system
- Can control vacuum through a wide range using a bleed or throttle valve
- Combine 2 capacitance manometers into one reading to expand the range for direct measurement up to 4 decades
- Need help building out a package to is custom to your needs? Contact Technical Support
-
StrataVac Multi-Gauge Vacuum Controller | Configurable to 3 Sensors
$625.08Select optionsThe StrataVac Multi-Gauge Vacuum Controller | Can control multiple gauges at one time | Accepts
different inputs based on driver board and sensor election- Can be configured with multiple expansion boards to measure and/or control up to 3 sensors at one time | Pirani | Capacitance Manometer | Thermocouple
- Can control vacuum from 10mT – 760T using a bleed or throttle valve
- Combine 2 capacitance manometers into one reading to expand the range for direct measurement up to 4 decades
- With WiFi option | Can be used to view graph and plot historical data with VacuumNetwork.org, and as a vacuum transmitter to cloud-based services
-
StrataVac | Distillation Vacuum Controller | Bellows Throttle Control | 1 Head Kit
$1,850.00Add to cartThe StrataVac Bellows Throttle Control Bundle comes with a sensor card, 536 KF25 sensor, throttle valve controller card, bellows throttle valve, and WiFi
- Enables vacuum pressure control using a solenoid valve for throttling pump suction
- Extends life of pump by enabling pump to run closer to it’s base pressure
- Total Range: 1 millitorr to 760 Torr
- Range with Accuracy: 1 x 10-3 Torr to 6 Torr
- Control Range: 10 millitorr to 6 Torr
-
DINAMO | Solvent Recovery Control Bundle | Get More Flow with Dinamo
$4,013.13Add to cartGet More with Dinamo! Control Rotary Evaporator or Vacuum Chamber with this Dual-Valve design for both proportional and bleed control. Lead time 2 weeks.
Precision Vacuum Control & Intuitive Design
- Measurement range: 1 Torr to 775 Torr
- Control Range: 2 Torr to 770 Torr
- Unique Vacuum Control: proportional throttle and proportional bleed control all in one unique valve
- Recipe Control: Program RAMP and HOLD vacuum at different a duration (Time) and vacuum level (Torr)
-
StrataVac Controller | Bleed Vacuum Control Bundle
$2,045.41Add to cartThe StrataVac bundle with bleed vacuum control comes with a sensor card, 536 KF25 sensor, VacStable Bleed Valve and valve controller card plus WiFi
- Rich remote command line interface enables the user a high degree of remote control and monitoring from any browser
- Bleed Vacuum Control helps increase molecular flow and throughput
- Accuracy Range: .001 Torr to 6 Torr
- Control Range: 1 Micron to 6000 Microns (.001 Torr to 6 Torr)
-
StrataVac Throttle Vacuum Control 775i Bundle | Industrial Plunger-Type Vacuum Control
$1,712.99Add to cartThe STRATAVAC bundle with plunger-type vacuum control comes with a sensor card, 775i sensor, throttle valve controller card and plunger-type throttle valve, which is a rugged industrial valve with a smaller .5″ orifice giving you a faster acting valve with tighter control on your process.
- Measure and control your process in the 1.0 – 775 Torr range (medium vacuum range) for industrial applications
- This bundle has a control range of 2 Torr to 770 Torr
- Extends life of pump by enabling pump to run closer to its base pressure
-
StrataVac Vacuum Controller | Industrial Plunger-Type Throttle Valve Bundle
$1,747.30Add to cartThe StrataVac with throttle vacuum control bundle comes with a sensor card, 536 KF25 sensor, throttle valve controller card and plunger-type throttle valve (with vacuum fittings), which is a rugged industrial valve with a smaller .05″ orifice giving you a faster acting valve with tighter control on your process.
- Measure and control your process in the .001 to 760 Torr range for industrial applications
- This bundle has a control range of 0.1 Torr – 10 Torr
- Extends life of pump by enabling pump to run closer to its base pressure
