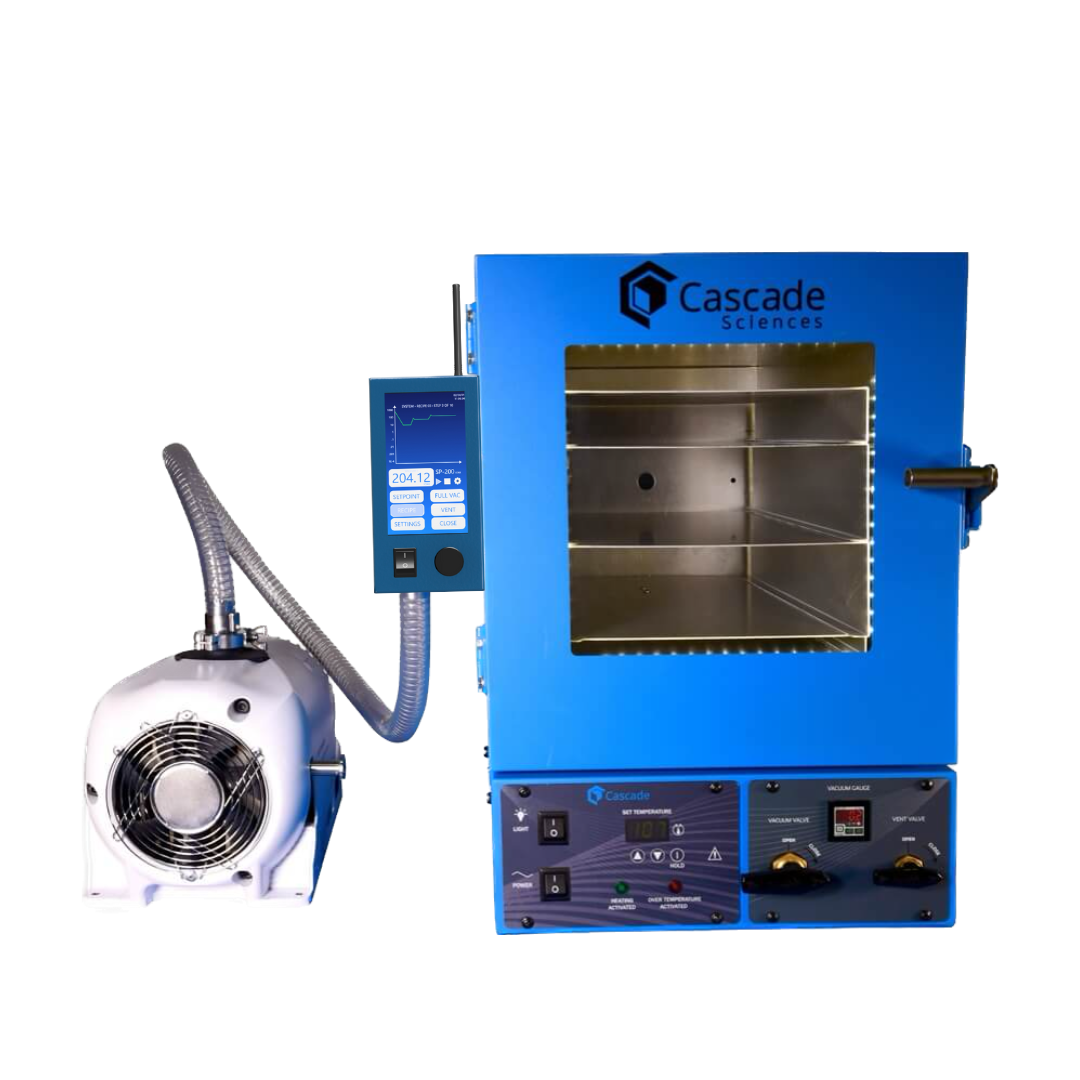

ULTIMATE Vacuum Oven Control with Cascade TVO-5 PRO Vacuum Oven Package pair with SNAP DCP Bundle

This all in one system solution provides the ultimate vacuum control for your Cascade TVO-5 PRO Vacuum Oven package. The SNAP vacuum controller paired with quantum DCP Capacitance Piezo technology allows complete control range of 50 millitorr to 750 Torr, offering an easy bundled solution for your vacuum drying or purging needs.

Cascade TVO-5 PRO Vacuum Oven Package

The Cascade TV0-5 Pro Vacuum Oven offers incredible temperature stability for vacuum drying and purging of pharmaceuticals, botanicals, slurries, or any temperature sensitive material. This vacuum oven will liberate solvents, water or other unwanted compounds in small batch, R&D, and laboratory environments. The TVO-5 PRO Package pairs the TVO-5 vacuum oven with the Agilent IDP7 5.4 cfm oil free scroll pump and installation kit.  It’s an ideal benchtop set-up for high production vacuum drying or purging.

The TVO-5 PRO Package is available in Stainless Steel.

TVO-5 PRO Package Includes

  • TVO-5 vacuum oven
  • 5 removable, height adjustable aluminum shelves
  • The oil-free, quiet Agilent IDP7, 5.4 CFM scroll vacuum pump
  • Installation kit

Optional Add-ons

  • Option Mobile Cart:  Double-Up Steel Mobile Cart: Blue Powder-coated Steel Mobile Stand For Cascade TVO-5 DOUBLE UP Package: Fits up to 2 each TVO-5 vacuum ovens. Locking casters, 2 each side-mounted shelves
    • Mobile Stacking Stand for TVO-5. This stacking rack can fit two TVO-5’s in an over under configuration. With only a single vacuum oven the pump can be placed on the bottom shelf. Comes standard with two VISU shelves. The shelves can be mounted on either the right or left side. The shelves are infinitely adjustable vertically on the mounting rail. Heavy duty casters are also used as leveling feet.
  • Optimize your process by adding Automated Vacuum Control: Add the SNAP Vacuum Controller to Automate and Optimize your vacuum drying process. Vacuum Controller with onboard ramp rate recipe control. Set up to 8 recipes based on time and pressure setpoints. Treat material in chamber more gently by implementing kinder ramp rate controls which is ideal for freeze drying, vacuum drying or lyophilization applications
  • SNAP with DCP:  The SNAP millitorr automated vacuum controller provides precise vacuum control and venting in one device from 750 Torr down to 50 millitorr. Easily control your vacuum process and venting with the touch of a button or the twist of a knob with the SNAP (Simple, Nimble, Automatic Process Controller).
  • IQ/OQ also and available option: IQ OQ Kit For TVO-5 Vacuum Ovens

                Optional IQ/OQ Kit Includes: Option Price $6,000

    • Serialized IQ OQ Document
    • 12 Channel Temperature Datalogger with USB/RS-232 comm. interface
    • KF-25 Vacuum Feed-thru With 9 Type J Thermocouple Wires
    • Thermocouple Tape
    • Insulated Case

Cascade TV0-5 Pro Vacuum Oven Features

  • NRTL Certified by TUV
  • 5 each adjustable shelves
  • Stable temperature control. Digital temperature readout with temp sensor INSIDE the oven
  • Bright LED lights in window for visibility of sensitive material
  • Touchscreen LED Control Panel with adjustable settings
  • Smooth, quarter-turn vacuum and vent valves
  • Energize vacuum pump from control panel
  • 120V or 220V power options are available
  • Quality Tempered Rated Glass NGI-US to ANSI Z97.1.2007  156CFR/201 11  SGCC -2577 ½ UA
  • Adjustable leveling feet insure your unit sits solid and level in the workspace
  • Stainless Steel option available
  • Made in USA

Agilent IDP7 Oil-Free Scroll Pump Features

  • Less noisy that diaphragm or oil-rotary vane pumps
  • No Inlet / Exhaust Filters Required
  • Hour Meter For Tracking Service Intervals
  • 1 Year Warranty
  • NRTL Certified
  • Expert Rebuild/Maintenance Available from Cascade
  • Maintenance is the replacement of a single interior tip seal. Order our IDP7 Tip Seal Replacement Kit or ask us about our maintenance service.
  • Pull Deeper Vacuum / Better Vapor Tolerance With Two Gas Ballast Positions. The Agilent IDP-7 has two gas ballast ports that assist the pump in handling condensable gases such as water vapor, or other gaseous products that become liquids or solvents when reaching atmospheric pressure. With neither of the gas ballast ports open, the IDP-7 has a base pressure of 20 mTorr.
  • Port in position 1 provides for ~ 12 grams per hour of water vapor pumping, and limits the base pressure of the pump to not less than 200 mTorr.
  • Port in position 2 provides for ~ 120 grams per hour of water vapor pumping, and limits the base pressure of the pump to not less than 1 Torr.

Both oven and pump can run off a single dedicated 120V / 1ph / 20 AMP circuit.

SNAP Vacuum Controller | Simple, Nimble, Automatic Process Controller with up to 10 Recipes

50 millitorr to 750 Torr Control Range

SNAP Vacuum Controller provides precise measurement, control and venting in one integrated solution. This Automated Process Controller ideal for vacuum ovens, TVAC, Drying Powders, API and more!

SNAP: Automatic Vacuum Process Controller | Vacuum control and venting with the touch of a button or twist of a dial

  • Vent your vacuum chamber or equalize your system with the touch of a button instead of pulling hoses or turning valves
  • Treat material in chamber more gently by implementing kinder ramp rate controls which is ideal for freeze drying, vacuum drying or lyophilization applications
  • Vacuum Controller with onboard ramp rate recipe control. Allows you to program up to 10 recipes with up to 24 steps in each recipe based on time and pressure setpoints.
  • Dashboard pushbutton control for START, STOP functionality for each channel allows you to automatically vent or isolate your system with a push of a button

Ideal for automating and simplifying vacuum chamber pressure control.

  • Vacuum Flange: KF25
  • Measurement Range: 1 Torr to 775 Torr (standard)
  • Control Range: 2 Torr to 760 Torr
  • Integrated Sensor: Isolated Piezo sensor
  • Need millitorr range?: SNAP has a RJ45 Port for adding an additional sensor to extend the measurement range. We recommend the addition of the DCP Quantum to be able to monitor and control from 0.01 Torr to 1000 Torr.

SNAP and DCP

The DCP (Digivac Capacitive-Piezo) when paired with SNAP reaches ranges of 50 mTorr to 750 Torr. Package Includes Snap Controller, DCP sensor, and External Sensor interconnection cable.

This bundle also includes the fittings and clamps to connect the SNAP and DCP to Cascade oven Package

Videos

Downloads

User Manual Data Sheet Brochure Temp Program Pump Manual Pump Data Sheet Drying RecipesSNAP  Op. Manual SNAP DS Quick Start Guide Cleaning Guide SNAP| Vacuum Oven QS  DV Cup Cheat SheetSNAP| External Sensor QS DCP User Guide

For more documentation, please visit DigiVac’s folder.

Technical Specifications

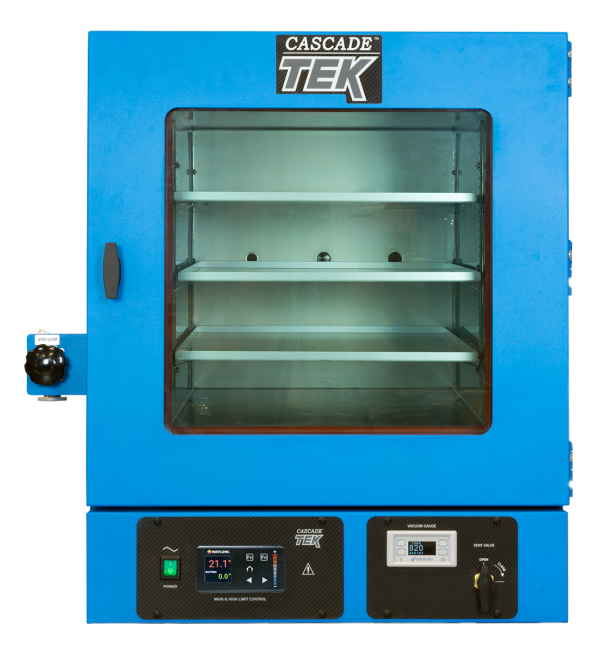

Model TVO-5

4.5 cubic foot

Interior Dimensions: 18” W x 18” H x 24” D

Exterior Dimensions: 26.6” W x 33.2 H x 34.5” D

Temperature Range: 10o C above ambient to 220oC. (Silicone gasket rated to 220C)

Temperature Uniformity: +/- 6.0% of set point.

Vacuum/Vent Controls: Manual hand vacuum valve to open & close vacuum line. Manual hand vent valve to open & close vent/purge/backfill line. (Front Control Panel)

Vacuum Gauge: Digital vacuum gauge (reads in kPa, kgf/cm2, bar, psi, mmHg, mmH2O, inHg). Limited to 29.9 inHg.

Vacuum / Vent Connections:

PUMP CONNECTION: 3/8” tube stub connection (rear).
BACKFILL CONNECTION: 1⁄4” tube stub (rear).
Access Port: KF25 for Thermocouple feed through or optional vacuum pump connection (rear)

Vacuum Pump and Connection Kit

Temperature Controls: Watlow EZ Zone PM Programmable Microprocessor with Ramp & Soak Capabilities.
Save up to 4 profiles in controller memory. Integrated over-temp controller. Additional
profiles can be saved via software/hardware. (See options)

Communication: DB25 for RS485 for Watlow Standard Bus communication. Optional: EIA 232/485
Modbus®RTU, EtherNet/IPTM/Modbus® TCP, DeviceNetTM, PROFIBUS DP, SAE J1939 CAN bus.
DB15 for Voltage Output for temperature and pressure output.

Heaters: 1500 watts

Power: 120V, 1ph, 50/60Hz, 13A

Shelves: 3 adjustable (0.5” centers) aluminum on pilaster strips.

Door: Full glass viewing window.

Door Gasket: Silicone rated to 220C. Additional gasket options available.

Weight (uncrated): 360 lbs.

Warranty: 2 Year limited warranty.

Safety Certifications: UL 61010-1, EN 61010-1, CSA 61010-1, CE.
