Description

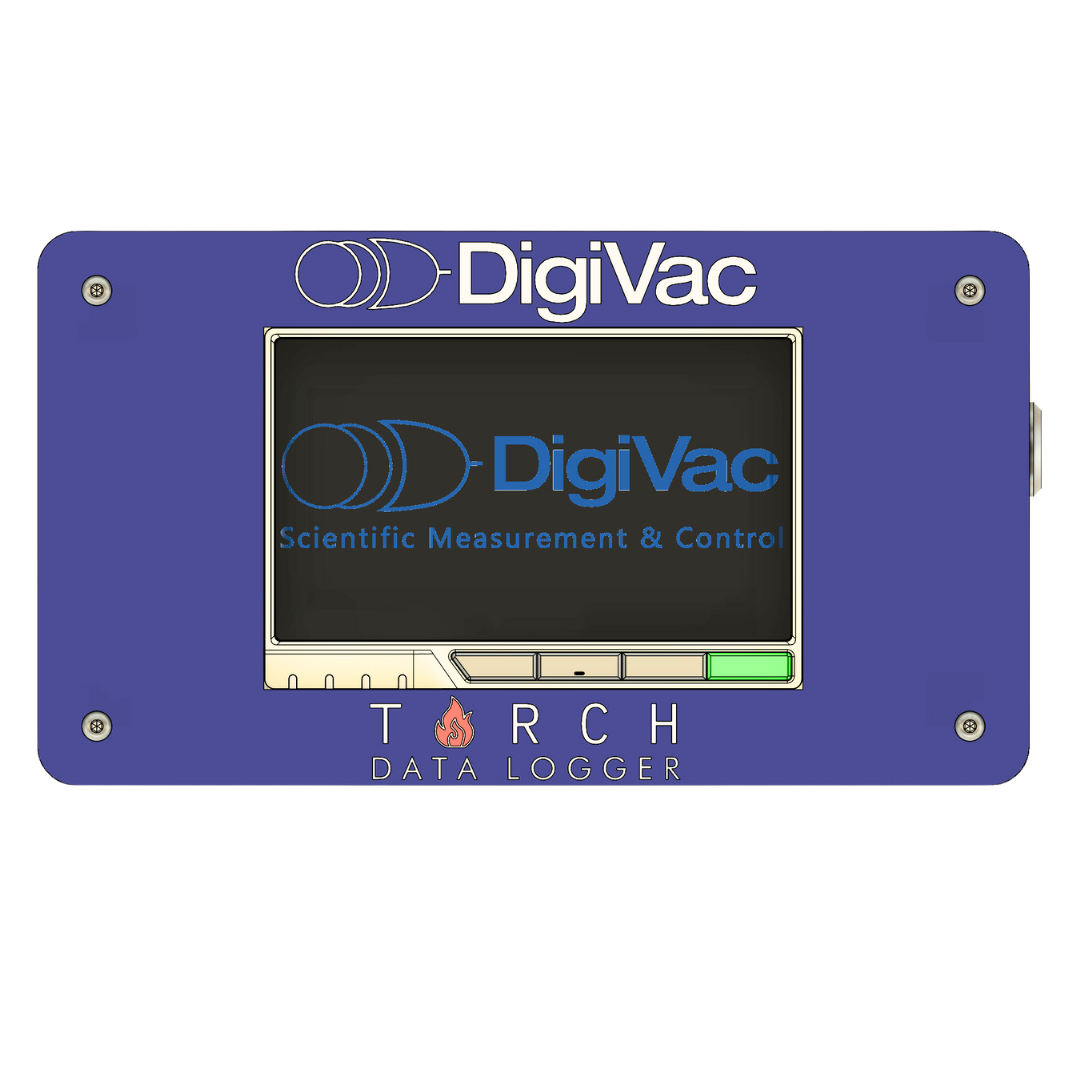

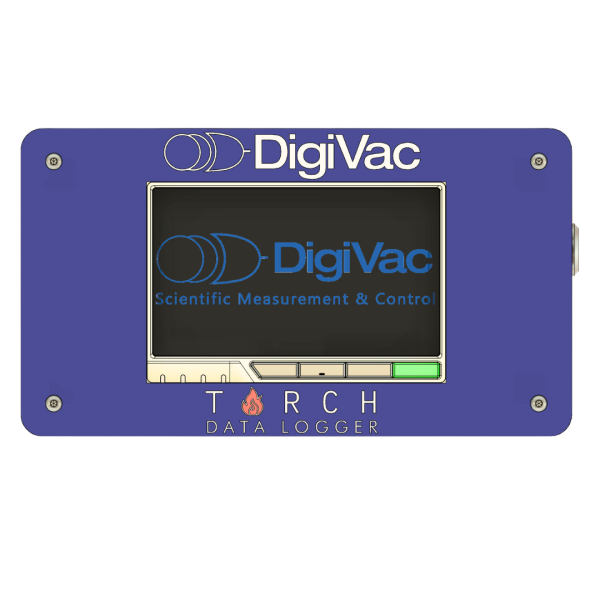

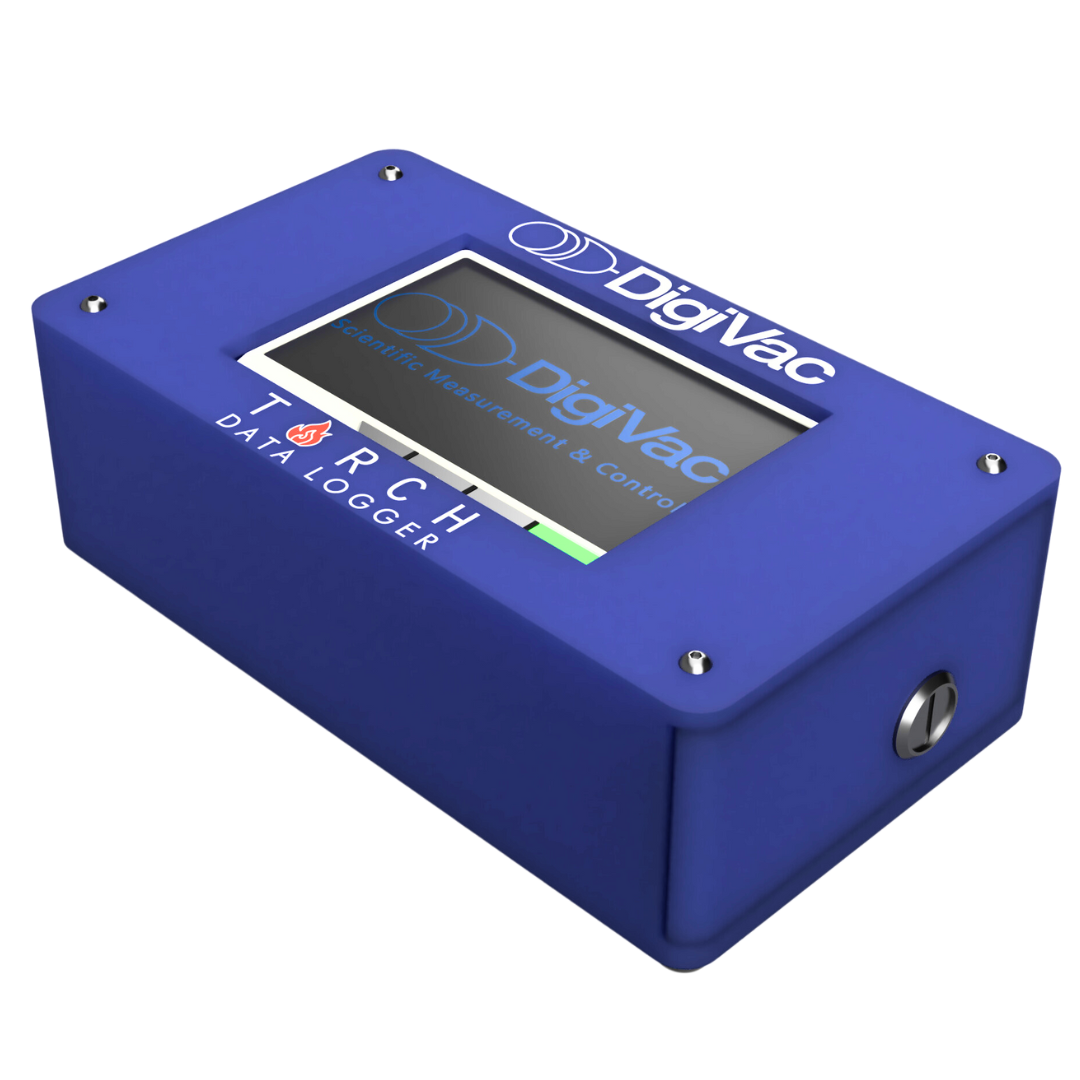

Vacuum and Temperature Data Logger

The Torch Data Logger is the answer to a simple data logging problem – the lack of temperature logging in addition to vacuum. It is a straightforward data logger that can log both temperature and vacuum/pressure information, straight onto a USB flash drive for secure and easy portability. With a 5″ display that has a touchscreen, the Torch Data Logger is made to have little to no human intervention.

  • PN: TORCH
  • Includes:
    • Datalogger
    • USB connection Cable to vacuum controller
    • power supply
    • (2) USBs

Compatibility

The Torch Data Logger works with the DigiVac StrataVac, Fyra,  or SNAP  vacuum controllers.

Logging Software Features

The Torch Logs Vacuum and temperature data continuously and effortlessly, its own memory stores over a millennium of hours and can double log using an additional usb thumb drive to store on the usb. When connected to the printer via printer cable will simultaneously print the data of the ongoing run when the log starts.

SYSTEM

  • COMPATIBLE with excel as files are saved in .csv format
  • LOG date, time, vacuum and temperature
  • SAVE directly onto a USB flash drive and internal drive

SECURE

  • RESUME logging data even in the event of a power outage
  • RELIABLY logs data to USB drive so logs have most up to date logging
  • READABLE only on USB device + file system to safeguard against tampering
  • PRINT data directly from the Torch to Bluetooth printer

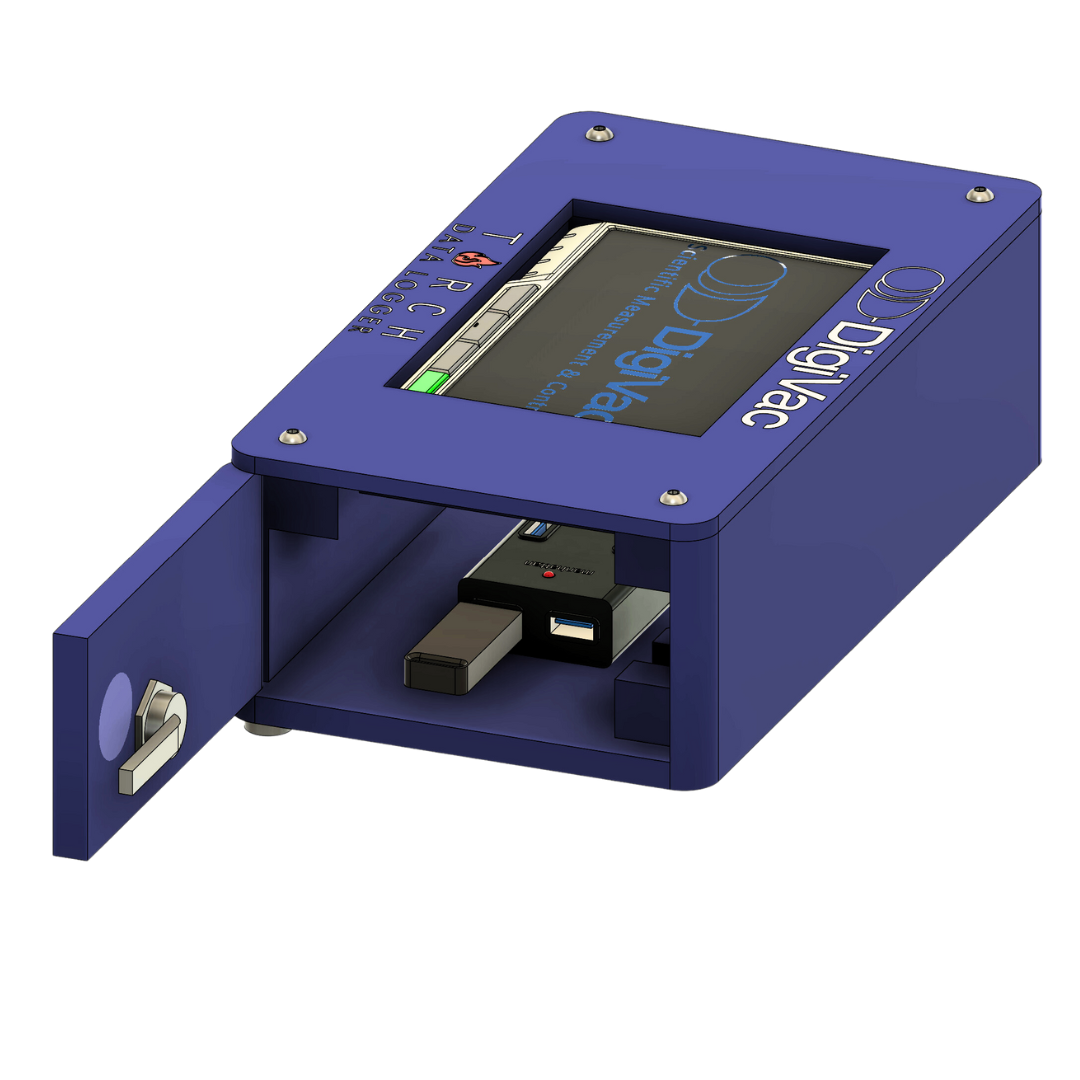

  • USB ports located behind physical lock and key

STRAIGHTFORWARD

  • USB port is located inside system’s enclosure
  • INITIALIZE right into logging mode
  • DISCOVERS StrataVac/Fyra/SNAP port automatically
  • VIEW logged data on internal file system

Applications

Any one working with Vacuum pressure and Temperature who needs a secure non PC datalogger with traceable and printing capabilities.

  • R&D
  • Processing
  • Monitoring
  • Medical
  • Space
  • Leak detection
  • Pump down
  • Gauge validation



Technical Specifications

Power Supply AC Power Adapter

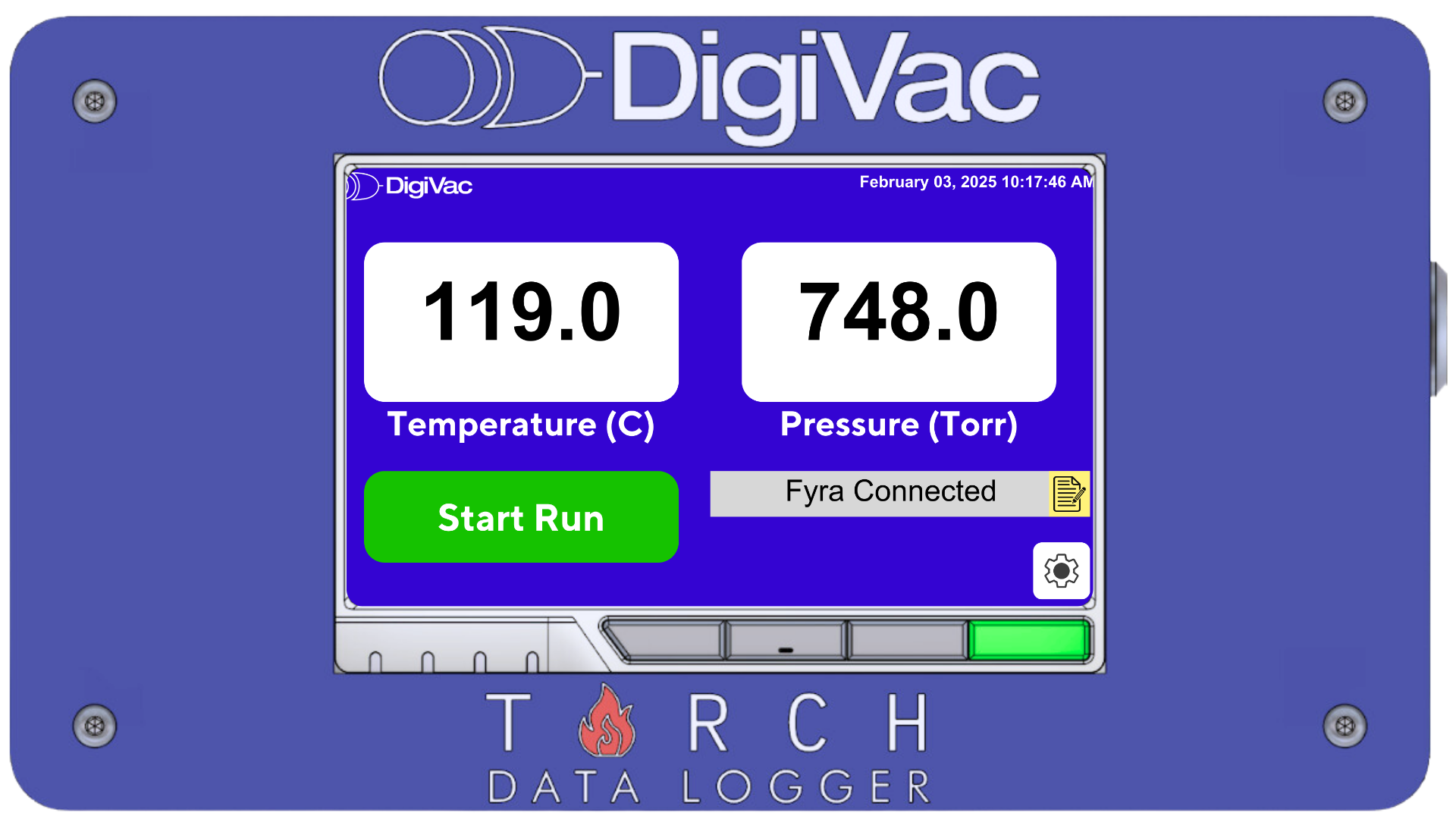

Display 5″ LCD display, 5-point capacitive touch
Dimensions 9.8” x 5.5” x 3”
USB 2 x USB (1 for printer, the other for thumb drive)
Storage Internal Storage of 20G + USB Flash Drive Capacity
Mount Magnetic or Benchtop

Downloads

Using the Vacuum Data Logging Instrument is simple.

Data Sheet | Operation Manual

For more documentation, please visit DigiVac’s folder.
