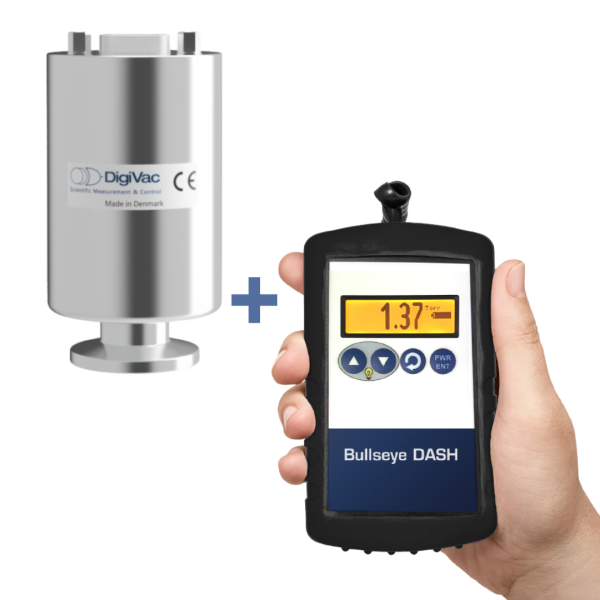

DASH TriSENS High Vacuum Gauge | Includes the DASH Battery Powered Vacuum Gauge with TriSENS DPCP Sensor

The DigiVac DASH TriSENS  high vacuum gauge is the only Portable Battery operated high vacuum gauge with a LED pressure indicator. The all-in-one ultra wide range vacuum sensor combines 3 vacuum technologies: the novel MEMS pirani, Capacitive (Capacitance Manometer) and Piezo technology to deliver a measurement range of 7.5 x 10 -6 to 1000 Torr.

The Digivac TriSENS Vacuum Sensor Delivers High Vacuum Measurement + Process Control + Overpressure Indication All in One.

With the combined usage of the ultra wide range TriSENS DPCP and DASH you no longer will have to use multiple sensors to interpret the process and data.

Bullseye DASH high vacuum gauge Stands For:

  • D – Direct Measurement of Capacitance Manometer
  • A – Active Monitoring
  • S – Scientific Applications
  • H – Historical Data Tracking, High (Vacuum)

Portable and Precise

  • Includes a powerful magnet and kickstand to enable hands-free operation
  • Solid state electronics built into a handheld gauge that operates using AA batteries (4) and lasts 20 hours when used with a porter CM or 7 hours with a standard ambient capacitance manometer
  • Versatility with 12 different measuring units (micron, Torr, Inches of Hg, kPa, Inches of H20, millitorr, mbar, Pa, PSIA, mm of Hg, bar, and mm of H2O)
  • This Portable Capacitance Manometer has the option to be powered with a Micro-USB power supply
  • Calibrated under actual vacuum against a NIST standard (NIST certification and documentation is optional)

DPCP Quantum | TriSENS Vacuum Sensor

The Digivac TriSENS Vacuum Sensor Delivers High Vacuum Measurement + Process Control + Overpressure Indication All in One

Deep & Wide Vacuum Measurement

Highly accurate direct pressure measurement down to 10 microns (.01 Torr) combined with high vacuum measurement down to 10-6

High Vacuum Gauge Measurement range:  7.5×10-6 to 1000 Torr

Contamination Containment

Integrated baffle helps protect sensor elements from particulate contamination and increase its longevity

Visual Process Indicator

Multi-color LEDs to indicate pressure range. Includes a bright yellow overpressure indicator to help you avoid system damage. This is very useful when not using a display controller

The DPCP Quantum | TriSENS Vacuum Sensor establishes new standards with an all-in-one wide range measurement solution for a wide selection of vacuum applications. This transducer is an overall cost-effective solution with an ultra-wide 9 decade range that includes 5 decades of gas independent measurement. The Digivac TriSENS: Quantum Pirani, Capacitance, Piezo all-in-one gauge

High Vacuum Gauge Advantages

  • Deep & wide measuring range of 9 decades delivered by an all-in-one gauge that combines pirani,
    capacitance manometer, and piezo technology
  • 6 decades of gas independent measurement| 5×10-3 to 1333 mbar
  • Reliable solid-state relay for process control
  • 0-10V for PLC Input
  • LED Color Pressure Indicator
  • Robust ceramic capacitance diaphragm gauge
  • Mountable in any orientation without impact on performance

Applications

  • PVD Coating Equipment
  • Freeze Drying endpoint detection
  • Load lock control
  • Mass Spectrometry
  • Scanning electron microscopy
  • Semiconductor
  • Research
  • Vacuum pump service
  • Heat treatment, Vacuum furnaces

Why is the Quantum Gauge Series a Quantum Leap for Vacuum Measurement?

The Quantum Gauge Series is a quantum leap in simplicity and range for vacuum gauging. Smart pairings of sensor technologies that deliver what people really need.

All-in-one, highly accurate wide range vacuum measurement at a cost-effective price point.

Accuracy Specifications:

7.5x10E-6 Torr to .001 Torr: +/- 20%
.001 Torr to 1000 Torr = +/- 3%

Other DigiVac Quantum Gauge Series OptionsDPP SmartSENS, DCP DuoSENS

Vacuum Gauge comparison chart

The DASH

Bullseye DASH is the 1st Portable Capacitance Manometer Gauge that both powers and displays the vacuum readings of capacitance

Applications

  • R&D temporary test system measurement that requires the direct measurement accuracy of Capacitance Manometers
  • For operators wanting to double check their instruments that are installed on tools and vacuum systems
  • Use as a field calibration standard for thermal gauges installed in systems

Graphing and Analysis

  • Patented vacuum graphing displays vacuum and time data
  • Visual graphing right on the display that identifies current system status
  • Vacuum Analytics to quickly identify vacuum pressure trends
  • Graphical display for quick determination of vacuum level
  • Bluetooth Version of the Bullseye DASH is available for Remote Monitoring

Choose Bluetooth version for:

  • Versatile Bluetooth Capacitance Manometer Gauge that you can monitor right from your phone or tablet (Apple iOS and Android)
  • Enables remote monitoring and troubleshooting
  • Set low and high alarm from your phone
  • From the Vacuum Gauge 2.0 App –  Email vacuum data to document leaks, baseline pressure or pump-downs



Watch this video of Tim Collins (DigiVac’s CEO) using the Bullseye DASH to instrument our vacuum pump down solution to verify function and safety. And this video overviews Bullseye’s use in understanding vacuum system function and performance.

Downloads

User ManualData SheetQuick Start GuideIs Your Pump Working?

For more documentation, please visit DigiVac’s folder.

Technical Specifications

Units Torr, mbar, bar, kPa, inches of Hg, mm Hg, millitorr, microns, inches of water, PSI, Pa
Range with Accuracy 7.5×10-6 to 1000 Torr
Sensor Type Quantum DPCP TriSENS
Dimensions 6.2”H x 3.7”W x 1.3”D
Certifications ROHS and CE

wide ranfe, dpcp



Downloads

Data Sheet | Quick Start| DASH Operation Manual

For more documentation, please visit DigiVac’s folder.

Data

Measuring Range 1×10-5 to 1333 mbar (7.5×10-6 to 1000 Torr)
Measuring principle 1×10-6 to 1×10-3 mbar MEMS Pirani thermal conductivity
Measuring principle 5×10-3 to 3.99 mbar Capacitance manometer
Measuring principle 6 to 1333 mbar MEMS piezo diaphragm
Measurement Accuracy (Torr)
From To Accuracy
7.5×10-6 7.5×10-5 50%
7.5×10-5 7.5×10-3 20%
7.5×10-3 1000 Torr 3%
DPC, DPCP, DASH, Quantum sensors, Capacitance manometer
DASH Portable High Vacuum Gauge | with Pirani, Capacitance, & Piezo | 7.5×10-6 to 1000 Torr
$2,239.00$2,389.00
